Flowcharts, otherwise known as process charts, are a great way to visualise and understand everything that goes into the manufacture process. Yours will outline the steps you will take to make your bespoke storage and include all the information you have worked so hard to get. Flowcharts have a specific format, use this as a guide.
Note - you only really need the rectangle (for steps) and triangle (for test). Try to make your flowchart as DETAILED as possible! Even MORE detail than this example.
This flowchart will be used for assessment when it comes time to make your design (next project), and also adds detail to your design work in this project because it proves you have figured out everything associated with your design idea.
Instructions
-
1
Construction Flowchart
Your flowchart must be extremely detailed and you should include every step needed to construct your idea. Remember, this is not only for assessment, it is the 'recipe' you will follow to actually build this idea.
Your construction flowchart must include:- Key stages/processes and materials
- Equipment needed
- Tests
- Integration (of parts)
- Time (how long you will spend on each step)
- Health and safety
Note: Hollie's example is found below.
Hollie's example
-

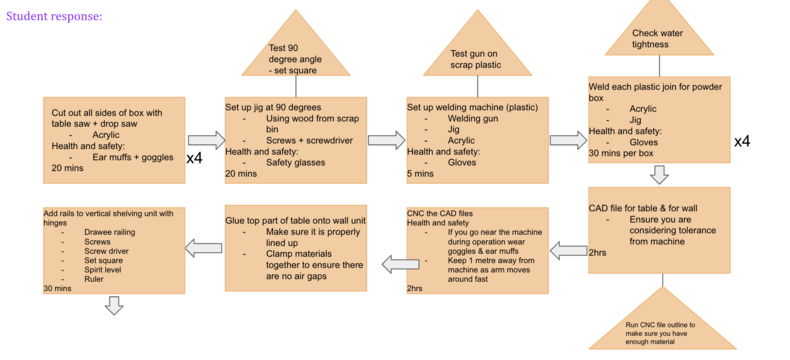

Hollie's construction flowchart
-

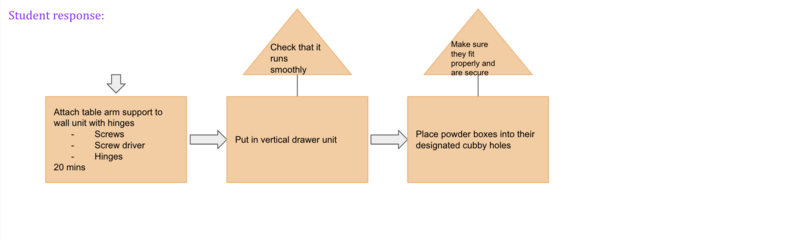

Hollie's construction flowchart
